Features

Specifications

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction Works , Energy & Mining

Video Outgoing-inspection: Not Available

Machinery Test Report: Not Available

Warranty Of Core Components: 1 Year

Core Components: Engine, Gearbox

Condition: New

Efficiency: 99.5%

Construction: Cartridge Filter

Porosity: 0.5μ

Dimension(L*W*H): 325*210*660

Weight: 0.244 KG

Warranty: 1 Year

After-sales Service Provided: No After-sales Service

Product Name: Dust Filter

Size: 325*210*660

Type: Laser Cutting Machine Dust Filter

Brand: Lvshen

Filtration Efficiency: 99.999%

Place Of Origin: Made In China, Hebei

Application: Dust Filtration

Item: Quick Detachable Dust Filter

Port: Tianjin

Highlight:

ISO Dust Collector Filter Cartridge

ISO Industrial dust filter

Industrial Dust Collector Filter Cartridge

Basic Infomation

Place of Origin: Hebei, China

Brand Name: lvshen

Payment & Shipping Terms

Packaging Details: Carton or according to customer requirements

Supply Ability: 100 Piece/Pieces per Week

Gallery

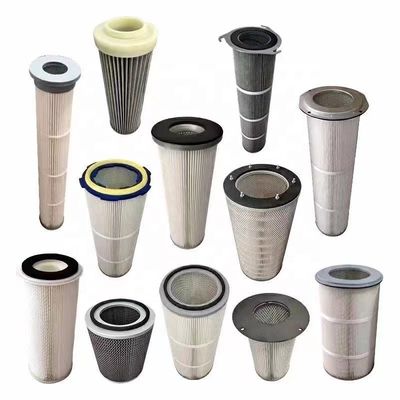

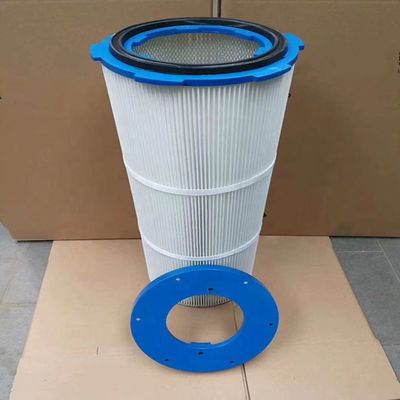

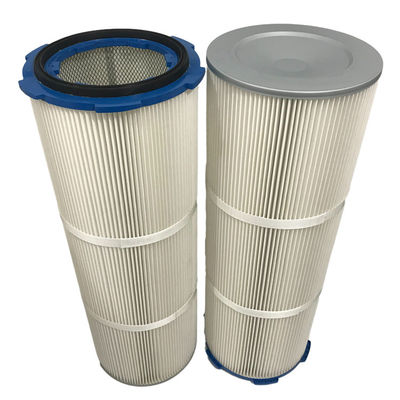

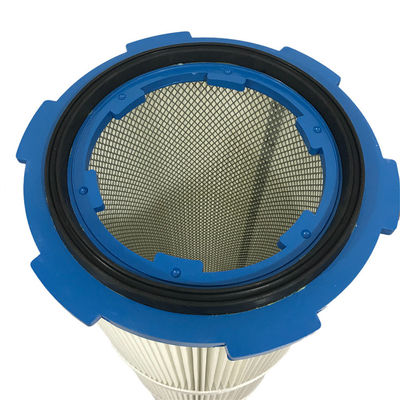

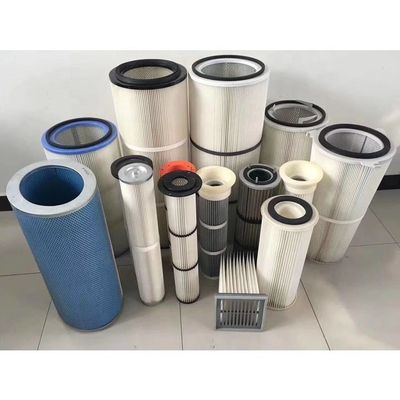

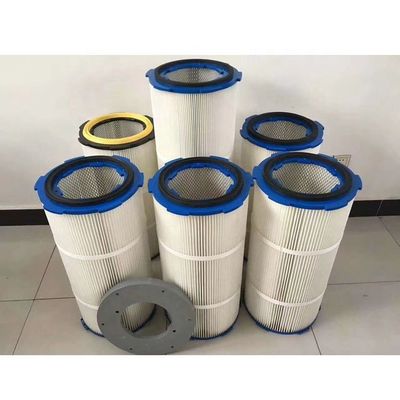

Release Quick Dust Collector Filter Cartridge Industrial ISO For Laser Cutting Machine

Product Description

Quick-release dust filter for laser cutting machine

Quick-release dust filter for laser cutting machine

Product Descriptions: Spun bond media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass. Features: (1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection. (2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency. (3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release. (4) Excellent resistance to chemical erosion. (5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Specification

Model	O.D	I.D	Length	Filtraion surfac(m2)
SFF/P3266	325mm	213mm	660mm	9.4m2
SFF/P3566	350mm	240mm	660mm	9.4m2
SFF/P3275	325mm	213mm	750mm	10.7m2
SFF/P3288	325mm	213mm	880mm	12.5m2
SFF/P3290	325mm	213mm	915mm	13.0m2

Filter Material: 1. Base media: Spunbonded polyester 2. Operating efficiency: 99.9% on 1 micron 3. Washable: Several times 4. Maximum operating temperature: 200oF/93oC 5. Abrasion resistance: Excellent 6. Chemical tolerance: Excellent 7. Optional flame retardant media(FR): To order Other composition: 1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability and life. 2. Inside cage: Galvanized steel, to prevent corrosion. 3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes. 4. Molded bottom: Helps resist abrasive wear at the bottom of the elements. Applications: 1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust. 2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc. 3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc. 4. Available for collectors: SFF/XLC, SFFK, Torit DFT 5. Substitute: Donaldson, Nodic, BHA Notes: 1. Optional construction and dimensions are available on all cartridges. 2. Please contact us to make optimal filtration solutions of your applications.
